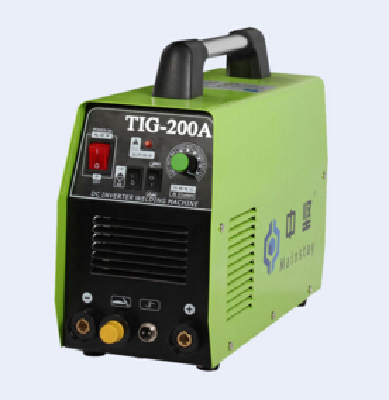

MAINSTAY brand ac/dc welding Tig200A made chinese welding inverter pcbwelding machine

MAINSTAY brand ac/dc welding Tig200A made chinese welding inverter pcbwelding machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 2000 Sets per Month
  • Port: Guangzhou
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2011-08-24
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  371*153*232mm
  • Place of Origin:  Guangdong China (Mainland)
  • Brand Name:  Mainstay
  • Model Number:  cut70
  • Weight: 8.000 kg

Features:
* Advanced MOSFET inverter technology,energy saving
* Two functions of TIG/MMA,economic and practical
* HF arc starting,stable current,the first choice for thin plate welding
* Over-voltage and over-current automatic protection
* Mainly used in welding carbon steel,stainless steel and alloy steel and copper, etc

Main Technical specifications
MODEL TIG160 TIG200 TIG250 TIG315 TIG400
Power voltage(v) Single phase AC230V±10% Three phase AC380V±10%
Frequency(Hz) 50/60
Rate input power(KVA) 5.3 7 9.4 12.8 18.2
No-load voltage(v) 56 56 70 70 70
Output current(A) 10-160 10-200 10-250 10-315 20-400
Rated output voltage (v) 26.4 28 30 32.6 34
Duty cycle(%) 60
Efficiency(%) 85
Power factor 0.93
Protection grade IP21
No-load loss(w) 40 40 40 60 60
Weight(kg) 8 8 16 19 28
Dimension of machine(mm) 370*150*234 480*200*300 520*200*300 525*297*409



  • Size:  371*153*232mm
  • Place of Origin:  Guangdong China (Mainland)
  • Brand Name:  Mainstay
  • Model Number:  cut70
  • Weight: 8.000 kg
