- Size: 370*150*234mm
- Place of Origin: Guangdong China (Mainland)
- Brand Name: Mainstay

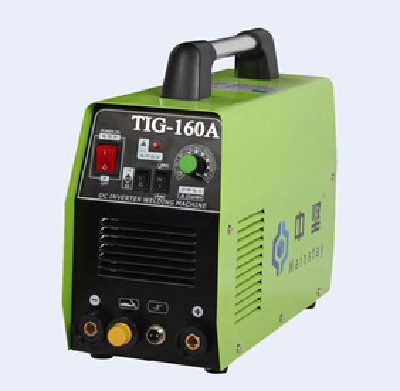

- Model Number: TIG160
- Weight: 8.000 kg
MODEL TIG160 TIG200 TIG250 TIG315 TIG400 Power voltage(v) Single phase AC230V±10% Three phase AC380V±10% Frequency(Hz) 50/60 Rate input power(KVA) 5.3 7 9.4 12.8 18.2 No-load voltage(v) 56 56 70 70 70 Output current(A) 10-160 10-200 10-250 10-315 20-400 Rated output voltage (v) 26.4 28 30 32.6 34 Duty cycle(%) 60 Efficiency(%) 85 Power factor 0.93 Protection grade IP21 No-load loss(w) 40 40 40 60 60 Weight(kg) 8 8 16 19 28 Dimension of machine(mm) 370*150*234 480*200*300 520*200*300 525*297*409
- Size: 370*150*234mm
- Place of Origin: Guangdong China (Mainland)
- Brand Name: Mainstay
- Model Number: TIG160
- Weight: 8.000 kg
